Manitowoc

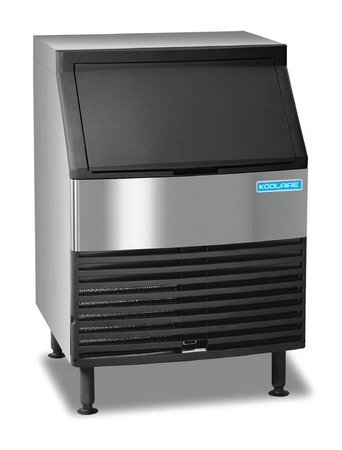

NEW 168 LB Under Counter Ice Machine & 92 LB Storage Bin KoolAire KDF-0150A Air Cooled #3221

$2,782.00

Overview Other Details

Product Description

Product Details

168-lb. ice production capacity
110-lb. AHRI-certified ice production capacity
Condenser pulls air in and out through the front
Water flows over the evaporator plate into cube cells and freezes
Water flow touches the ice probe for 7 sec. before the harvest cycle starts
Hot-gas valve opens and releases hot refrigerant into the evaporator, warming it so that ice falls from the cells
Damper is held open for 7 sec. to turn the ice machine off when the bin is full
On/off/wash switch is straightforward to use
Reusable air filter facilitates cleaning the condenser
Produces full cubes, which are ideal for various kinds of beverages
Full cubes melt slowly but do not cool drinks as quickly as half cubes
Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
92-lb. ice storage capacity
Bin door slides up and under the top for quick scooping
Uses R404A refrigerant
Should not be placed near equipment that generates heat or in direct sunlight
Required ambient air temperature: 39.2-100 degrees F
Required incoming water temperature: 39.2-90 degrees F
Required incoming water pressure: 20-80 PSI

Dimensions & Utilities

26 in. W x 26.5 in. D x 38.5 in. H
7.2 A, 9.35 kW
115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

SHIPPING

Freight Program

1. Lift gate delivery (lowers item to the ground)........................ $50.00

Freight fees are subject to terms and conditions. Remote area surcharge is applied to deliveries to less accessible locations beyond the carrier’s standard and extended area.

2. ADDITIONAL CHARGES PER SHIPMENT

Below additional shipping charges should be requested at time of purchase. The customer shall be responsible for any extra charges below if the customer requests or received services from the carrier directly without prior notice to Mike's Restaurant Supply

Appointment Delivery............................................................... $50.00

Limited Access........................................................................ $50.00

(i.e., Limited access, Including but not limited to:, , multi-complex areas, strip malls, airports, Churches, (places of worship), construction areas, golf courses, country clubs, hotels, hospitals, Military bases, storage facility, schools, shopping malls.

Re-consignment or Re-delivery............................................. $150.00

Residential area delivery...........................................................$75.00

3. Services we do NOT provide:

Mike’s Restaurant Supply does not provide the services below. The customer should NOT ask the delivery driver for inside delivery at the time of delivery. Customers that receive inside delivery will be charged an additional fee. The carrier determines that fee.

4. DAMAGES

Units must be inspected at the time of delivery for any visual damage. If you notice the pallet is broken or the item has visual damage, refuse the item, note on the Bill Of Lading and take photos. This is the only way to get the customer a refund. Carriers will not accept responsibility for any damage after the item has been accepted and signed for.

**There are NO ADDITIONAL charges if you are picking the item up from our warehouse location and we are glad to help you load the item. Please bring rope or tie downs to fasten the item securely, we DO NOT supply any.

**The Above Shipping quotes are for THE LOWER 48 States Only.
